Price range: $ 5,999 through $ 8,499
Take Advantage of Federal Gov Rebate and Save Huge
By submitting your details, you consent to AriseSolar collecting and sharing your personal information with its representatives and third parties to contact you about relevant products and services, in line with its Privacy Policy
| Model | FH3X-8K-HY-3P 10/15/20/25/30/35 |
FH3X-10K-HY-3P 10/15/20/25/30/35 |
FH3X-12K-HY-3P 10/15/20/25/30/35 |
FH3X-15K-HY-3P 10/15/20/25/30/35 |
|---|---|---|---|---|
| Main System Data | ||||

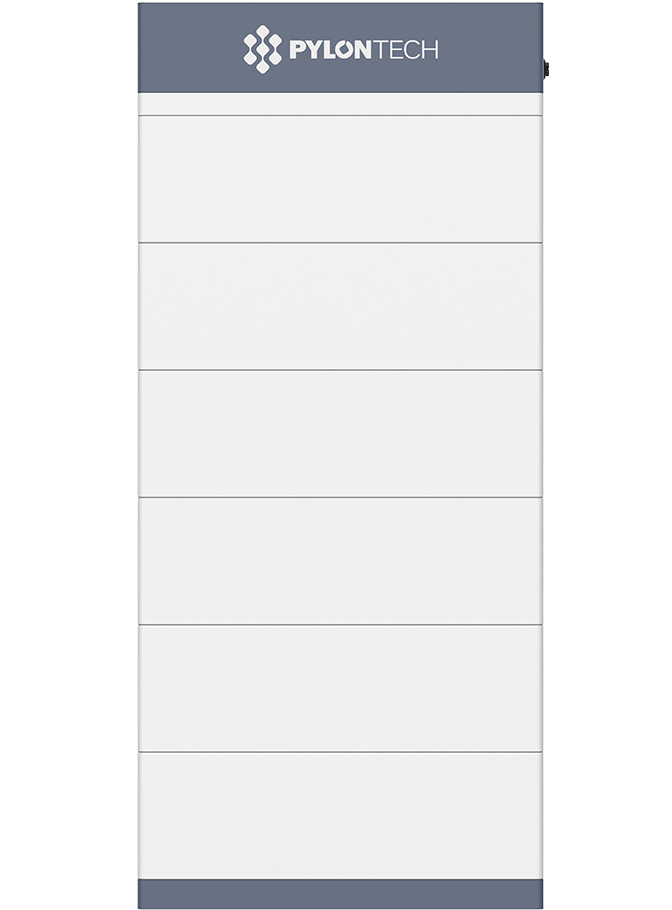

| Battery Module | FH10050 | |||
| Number of Battery Modules | 2 / 3 / 4 / 5 / 6 / 7 | |||
| System Nominal Capacity (kWh) | 10.24 / 15.36 / 20.48 / 25.6 / 30.72 / 35.84 | |||
| System Nominal Power (kW) | 8 | 10 | 12 | 15 |
| DC Parameter (PV Side) | ||||
| Maximum Power (kW) | 12.8 | 16 | 19.2 | 24 |
| Maximum Input Voltage (Vdc) | 1000 | |||
| Start Up Voltage (Vdc) | 200 | |||
| MPPT Voltage Range (Vdc) | 200~850 | |||
| MPPT Full Load Voltage Range (Vdc) | 280~850 | |||
| Number of MPPT | 3 | |||
| Number of PV Strings Per MPPT | 1 | |||
| Maximum Current (A) | 20 | |||
| Short Circuit Current Per MPPT (A) | 30 | |||
| Surge Protection | Type II | |||
| DC Parameter (Battery Side) | ||||
| Maximum Continuous Charge/Discharge Current (A) | 50 | |||
| Maximum Charging Power of the Three-Phase Module with Two Batteries (kW) | 10 | |||
| Maximum Charging Power of the Three-Phase Module with More Than Two Batteries (kW) | 8 | 10 | 10 | 10 |
| Maximum Discharging Power of the Three-Phase Module with More Than Two Batteries (kW) | 8 | 10 | 12 | 15 |
| AC Parameter (Grid Side) | ||||
| Nominal Grid Voltage | 3/N/PE ac. 400V | |||
| Nominal Grid Frequency (Hz) | 50/60 | |||
| Maximum Nominal Continuous Current to Grid (A) | 11.6 | 14.5 | 17.4 | 21.7 |
| Nominal Active Power to Grid (W) | 8000 | 10000 | 12000 | 15000 |
| Maximum Nominal Apparent Power to Grid (VA) | 8000 | 10000 | 12000 | 15000 |
| Maximum Nominal Continuous Current from Grid (A) | 17.4 | 21.7 | 26.1 | 32.6 |
| Nominal Active Power from Grid (W) | 12000 | 15000 | 18000 | 22500 |
| Maximum Nominal Apparent Power from Grid (VA) | 12000 | 15000 | 18000 | 22500 |
| Power Factor Range | -0.8 ~ +0.8 | |||
| THDi | <3% | |||
| AC Parameter (Back-up Side) | ||||
| Nominal Voltage | 3/N/PE ac. 400V | |||
| Nominal Output Frequency (Hz) | 50/60 | |||
| Maximum Nominal Continuous Current (A) | 11.6 | 14.5 | 17.4 | 21.7 |
| Maximum Nominal Apparent Power (VA) | 8000 | 10000 | 12000 | 15000 |
| Peak Off-Grid Power (60s) Estimate (VA) | 12000 | 15000 | 18000 | 22500 |
| Power Factor Range | -0.8 ~ +0.8 | |||
| ON/OFF Grid Switching Time (ms) | ≤10 | |||
| THDv | <3% | |||
| Maximum Efficiency | 98% |
| European Efficiency | 97.5% |
| Anti-Islanding Protection | Yes |
| AFCI | 2.0@IEC63027 |
| Insulation Resistor Detection | Yes |
| Residual Current Monitoring Unit | Yes |
| Output Over Current Protection | Yes |
| Output Short Protection | Yes |
| Output Overvoltage Protection | Yes |
| DC Switch | Yes |
| DC Reverse Polarity Protection | Yes |
| DC/AC Surge Protection | Type II |
| PV Overvoltage Protection | Yes |
| Dimensions (W/H/D, mm) | 540×705 / 875 / 1045 / 1215 / 1385 / 1555 × 350 |
| Weight (kg) | 86 / 125 / 164 / 203 / 242 / 281 |
| Topology | Transformerless |
| Operating Temperature Range (°C) | -10 ~ 55 |
| System Working Humidity Range | 0~100% |
| System Working Altitude (m) | <4000 |
| Common Noise Level (1 meter) (dB) | <29 |
| Maximum Parallel | 6 |
| Protective Class | I |
| Overvoltage Category | DC II / AC III |
| Ingress Protection | IP65 |
| System Salt Spray Level | C5-M |
| Cooling | Natural Cooling |
| Standby Consumption (Night) | <15W |
| Communication Portal | WiFi / WLAN / Bluetooth |
| Display | LED |
| EPO | Installed |
| UN38.3 / IEC61000-6 / VDE-AR-E-2510-50:2017-05 / IEC62619:2022 / IEC60730-1 / ISO13849 / IEC62477-1:2022EN 62477-1:2012+A12:2021 / IEC62109-1:2010 / IEC62109-2:2011VDE-AR-N-4105:2018 / DIN VDE V 0124-100:2020 / EN50549-10 / EN50549-1 / PPDS Annex:2022 / EN50549-10/C10/1+EN50549-10/EIFS+EN50549-10/CEI0-21/RD1699 RD661 RD413/UNE 217002:2020/NTS Version 2.1:2021/UNE 217001:2021/AS 4777.2/AS60947.3/G98/G99/TOR/PTPIREE/NA-EEA-NE7-CH:2020 |
Note:
